Harman/Kardon

Harman Kardon Citation 300

Details
Variations

The medium-size smart home speaker with award winning design

Beautiful Sound That Speaks To You

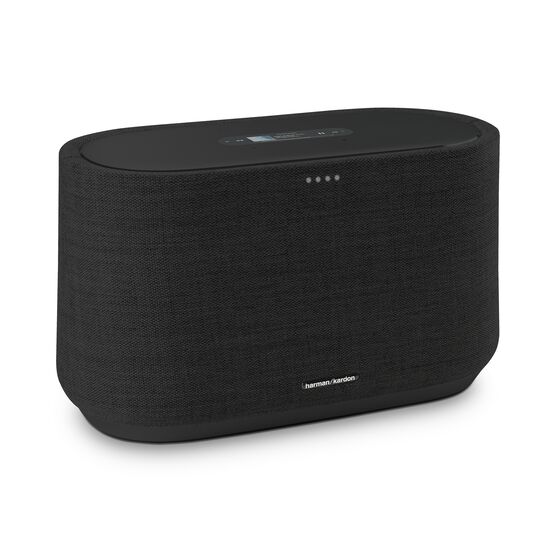

The Harman Kardon Citation 300 is a next generation stereo smart speaker. Easy to use with its full-color LCD touch screen, Citation 300 blends innovation in home audio with attention to detail in design, allowing for sophisticated looks and incredible stereo sound. Music lovers will love the room-filling stereo sound and surprisingly rich bass with access to over 300 music services and high-definition streaming through Chromecast built-in. The Google Assistant brings convenient voice control to your Citation 300 for hands-free help around the home. Get answers, play music, organize your day, control your smart home, enjoy your entertainment and more, just with your voice!

Item# CITATION 300

General Specifications

Power Supply 100-240V – 50/60Hz
Power consumption in sleep mode <2.0 Watts
Wireless network 802.11 a/b/g/n/ac (2.4GHz/5GHz)
2.4G Wi-Fi transmitter frequency range 2412 – 2472MHz (2.4GHzISM Band, USA 11 Channels, Europe and others 13 Channels)
2.4G Wi-Fi transmitter power <20dBm
2.4G Wi-Fi modulation DBPSK, DQPSK, CCK, QPSK, BPSK, 16QAM, 64QAM
5G Wi-Fi transmitter power <23dBm
5G Wi-Fi modulation QPSK, BPSK, 16QAM, 64QAM, 256QAM
5G Wi-Fi transmitter frequency range 5.15 - 5.35GHz, 5.470 - 5.725GHz, 5.725 - 5.825GHz
Note CITATION 300 is intended to be used for streaming music. A consumer can stream Bluetooth audio to the speaker. A consumer can connect their speaker to the localWi-Fi Network and stream music with Google Chromecast. In addition, the speaker will work with Google Home. This product is designed to be instantly on and ready to play music at a moment's notice, therefore, the Bluetooth and Wi-Fi connection must remain active at all times to ensure proper operation. CITATION 300 is in compliance with the European Union energy legislation. CITATION 300 will enter into sleep mode (networked standby) after 20 minutes without operation, after which it can be re-activated via Bluetooth or Wi-Fi.

Audio Specifications

Signal-to-noise ratio >80dB
Supported audio formats HE-AAC, LC-AAC, MP3, Vorbis, WAV (LPCM), FLAC, Opus
Output power 100W RMS
Transducer 2 x 20mm tweeter, 2 x 89mm woofer

Dimensions

Dimensions (W x H x D) 306 x 180 x 142 mm
Weight 4.1 kg (9lb)

Control and Connection Specifications

Bluetooth® version 4.2
Bluetooth transmitter frequency range 2402 – 2480MHz
Bluetooth transmitter power <10dBm
Bluetooth transmitter modulation GFSK,π/4 DQPSK, 8DPSK
Click here for a complete list of all specs for this product

Spec Sheet (English)

English 873 KB
  • 1 x Citation 300
  • 1 x power cable (1.8m)
  • 1 x Quick-start guide
  • 1 x Warranty sheet
  • 1 x Safety sheet
product box
