SOPHISTICATED SCANDINAVIAN DESIGN, ALL-WHEEL-DRIVE TECHNOLOGY

14 SPEAKERS – 650 WATTS

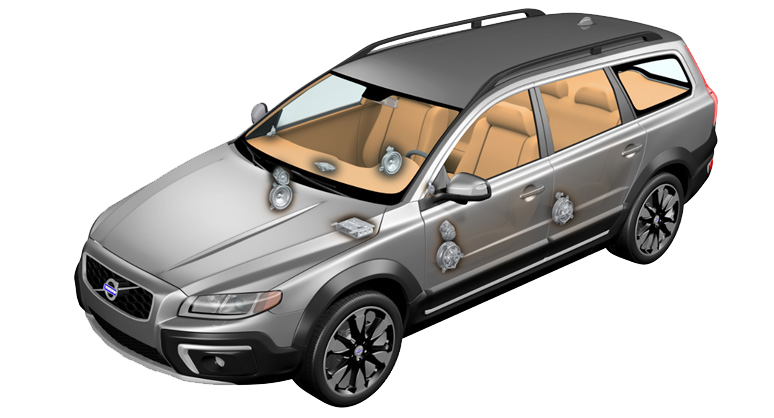

Volvo XC70 drivers want their sound systems to be a seamlessly integrated part of this world, which is where Harman Kardon comes in. The engineers took the increased interior space of the Volvo XC70 estate into account and devised a system with up to 14 speakers perfectly located around the interior of the SUV for a comfortable yet powerful sound experience. The 650-watt Class-D amplifier creates a powerful rich sound with crystal-clear highs and powerful,low-distortion bass that remains reliably rich and consistently smooth even atthe deepest of frequencies.
PERFECT RICH SOUND
A Class-Damplifier, with five or even seven channels with 130 watts each, ensures superior power reserves for a wide dynamic range. Two optional 130 mm bandpass subwoofers in the luggage compartment make use of additional body volume in an unobtrusive yet highly effective manner, while the Harman Kardon sound system integrates neatly into the high-end interior of the XC70. Harman Kardon also uses Dirac LiveTM phase linear FIR filters for superior sound reproduction over the entire frequency range.
Volvo XC70
Harman Kardon brings decades of experience and excellence in sound to the new partnership with Volvo. Delivering brilliant, perfect surround sound, carefully tailored to each model, and setting new standards in listening pleasure. The Volvo XC70 combines classic Volvo estate car design with all-wheel-drive versatility. Whether they are hauling family and luggage or driving up the bumpy side of a mountain, Volvo XC70 owners are doing it in comfort and style.
Quick-specs
2 x 165mm ALumaprene woofers, rear doors
Diameter 165mm
Technology ALumaprene
Type woofer
1 x 80mm ALumaprene midrange center speaker with vented magnet system and ferrofluid damping, dashboard
Diameter 80mm
Technology ALumaprene
Type midrange center speakers
5 x 25mm cloth dome tweeters of impregnated polyester, dashboard, front and rear doors
Diameter 25mm
Type tweeters
2 x 80mm ALumaprene midrange speakers, front doors
Diameter 80mm
Type ALumaprene
5-channel Class-D amplifier with a total output of 650 watts, 130 watts each channel
Output 650watts
Technology Class-D
Type amplifier

2 x 165mm ALumaprene woofers, rear doors
Diameter 165mm
Technology ALumaprene
Type woofer
1 x 80mm ALumaprene midrange center speaker with vented magnet system and ferrofluid damping, dashboard
Diameter 80mm
Technology ALumaprene
Type midrange center speakers
5 x 25mm cloth dome tweeters of impregnated polyester, dashboard, front and rear doors
Diameter 25mm
Type tweeters
2 x 80mm ALumaprene midrange speakers, front doors
Diameter 80mm
Type ALumaprene
5-channel Class-D amplifier with a total output of 650 watts, 130 watts each channel
Output 650watts
Technology Class-D
Type amplifier
About the Volvo XC70 Learn more
Harman Kardon Cutting edge Technologies
At Harman Kardon, we strongly believe in first-class quality music reproduction. Music must always preserve its character and nature. Music is meant to be a full and rich emotional experience. That attitude determines how we see and use technology. For Harman Kardon, technology has one purpose and one purpose only – to serve the music!
